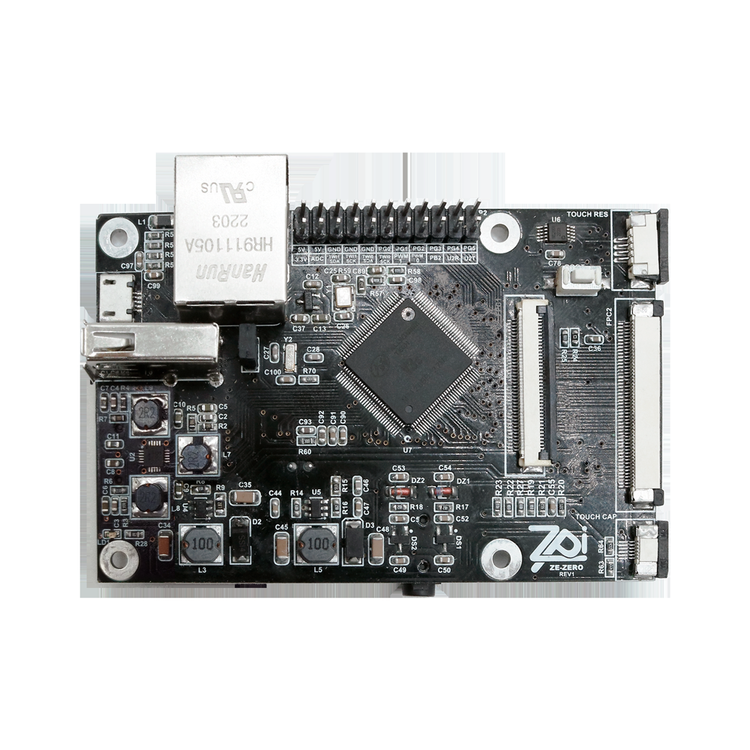

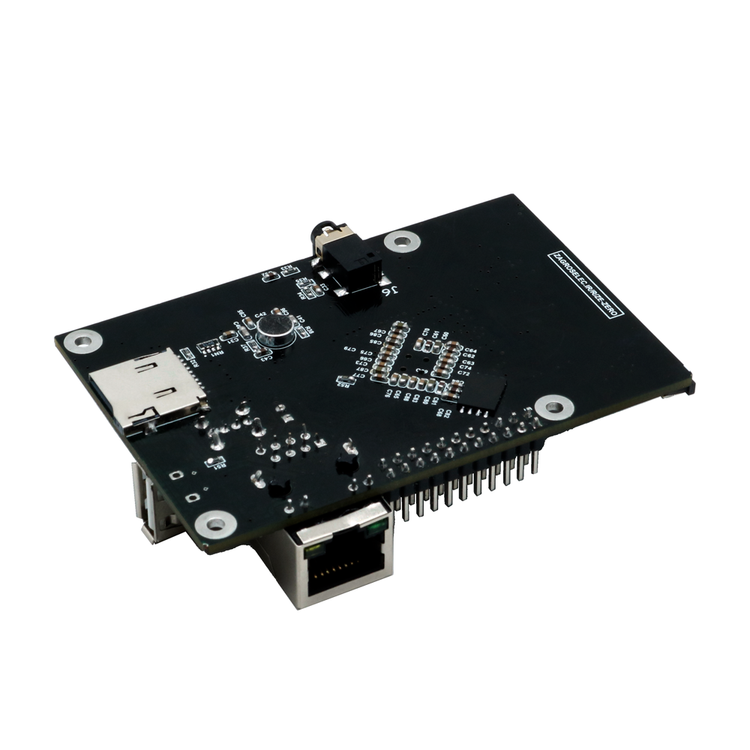

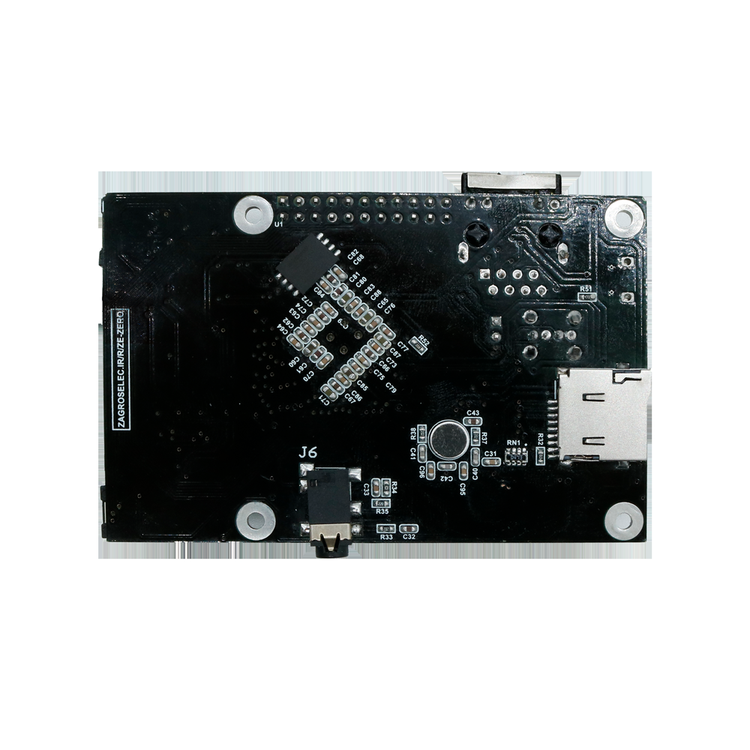

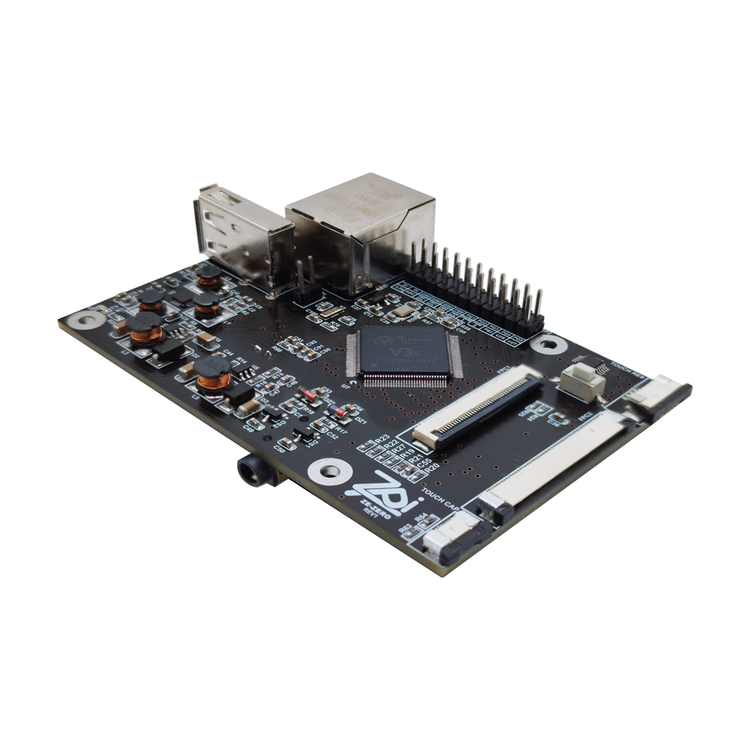

ZPI BOARD

نام قطعه: ZPI BOARD
نام کارخانه‌ای: ZE-ZERO
برند: IRAN
پکیج: Module
عنوان گروه: Single Board Computers
دیتاشیت: ZPI BOARD
توضیحات: ARM Cortex-A7, 1.2GHz max 64MB DDR2 integrated Direct plug 40P 4.3/5/7 inch LCD（onboard backlight driver) plug 50P 7/9inch LCD via converter board Supported resolutions: 272x480, 480x800,1024x600 Onboard RTP chip, supports a touch screen OnBoard RGB LED SDIO x2 SPI x1 I2C x2 UART x3 100M Ether x1（include EPHY） OTG USB x1 MIPI CSI x1 PWM x2 LRADC x1 Speakerx2 + Mic x1
